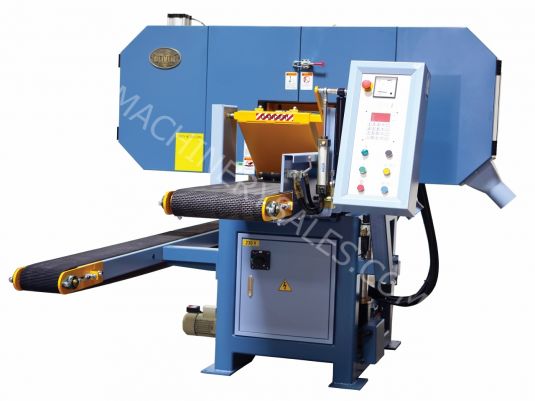

New OLIVER Horizontal Resaw, Model 4685 Hydraulic Single Head Horizontal Resaw
One New OLIVER Model 4685 Hydraulic Single Head Horizontal Resaw powered by a 30 HP 3 phase TEFC motor 220/440 volts prewired 220 volts (440 volts additional charge) For brochure click on View PDF View PDF

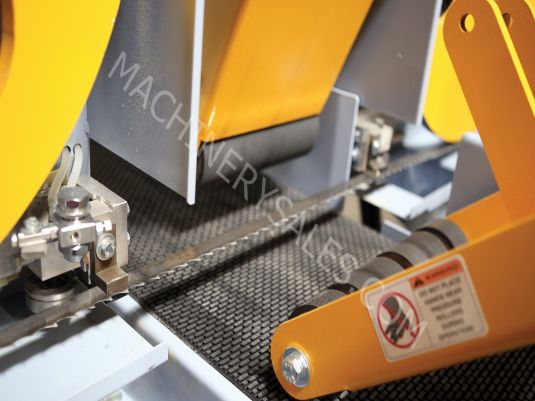

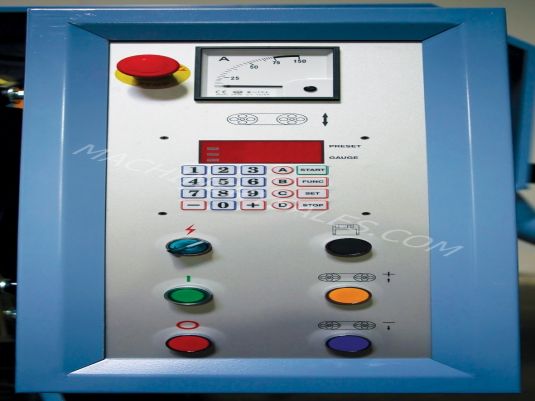

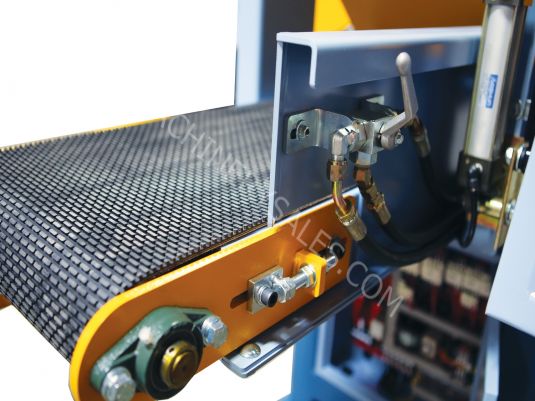

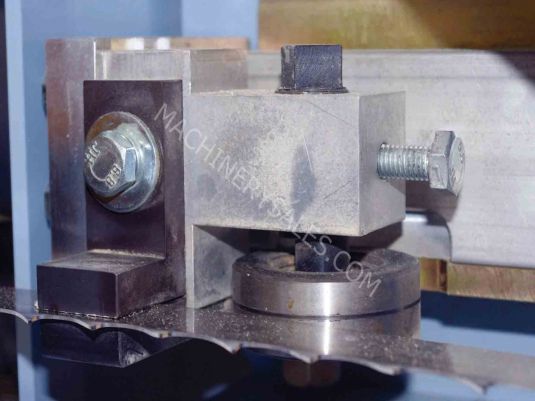

- Maximum workpiece is 15.75" wide x 9.5" tall capacity. - Distance blade to conveyor table is 5/32" to 12". - Conveyor belt size is 15 1/4" wide x 215-3/4" long includes a return conveyor. - 28" diameter x 1" wide band wheels are machined from solid steel and precision balanced with ceramic blade guides. Fully adjustable blade guides help dissipate the heat as well as keep the blade running true. Saw blade size 1" wide x 180" long. - 3 HP Variable feed speed adjustable 13 - 82 FPM by hydraulic drive system. - Programmable controller automatically adjusts for cutting thickness. Conveyors and blade tensioning are both hydraulically controlled. - 1/4HP motor powered set works for ease of saw wheel elevation. Digital position controller permits accurate saw wheel height positioning & is programmable for repetitive cuts. - Heavy duty rubberized conveyor working with the rubber hold down rollers ensure positive feed with no slipping even with extra wide and hardwoods. Full width rubber hold down wheels apply pressure directly before and after the blade to ensure stability at the cut point. - Rear hold down pressure is assisted by an adjustable air cylinder/shock absorber system to ensure positive & accurate feeding. - Back-up thrust bearing is grooved to further assist in keeping the blade true. Linear bearing guides support the massive band wheels to ensure longevity & negate saw vibration. - Air over hydraulic system automatically tensions the saw blade for varying loads and can be adjusted for width of blade being used. - Massive 2-3/8†chrome steeled lift rods are guided through a 15†long housing to ensure rigid support of the bandmill. - A fully adjustable oil mist system keeps the blade cool and prolongs blade life. - Machine weights 3,748 lbs. physical size 113†x 89†x 81â€. See photos & literature on New OLIVER Model 4685 Hydraulic Single Head Horizontal Resaw on our web site. Inventory No. M-143. Additional information contact: Kathy Monks MACHINERY SALES CO., INC. USA Toll Free line: 866-292-6222 Or direct line: 360-379-6675 Fax: 360-379-6794 Email: kathy@machinerysales.com
Click thumbnails below to view larger image:
