Western Gear Reducer 5HP, 3, 144:1 Total Ratio

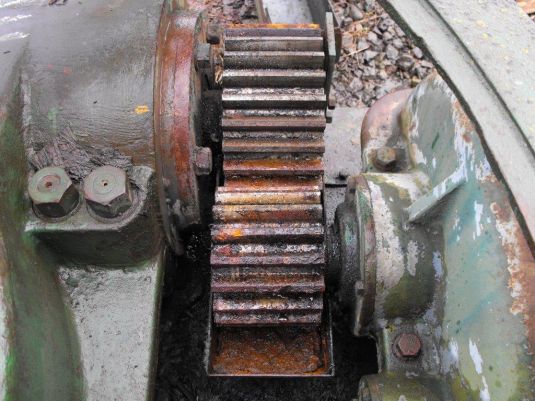

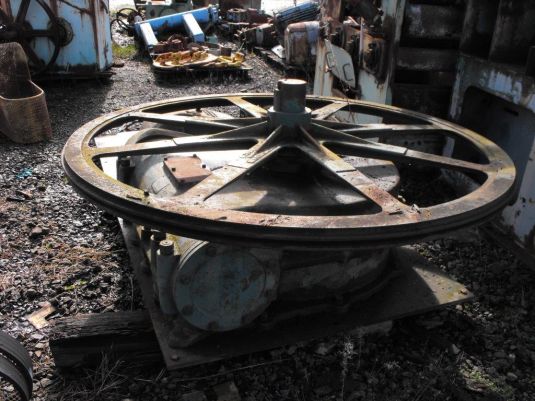

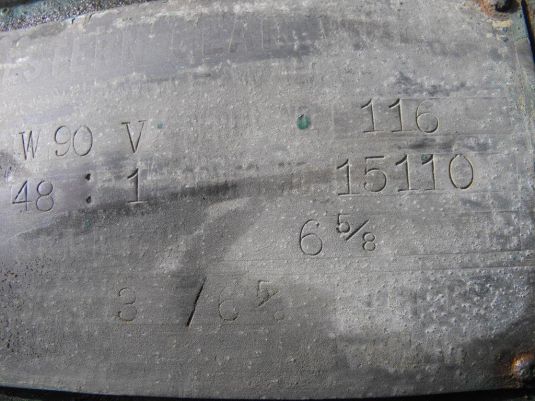

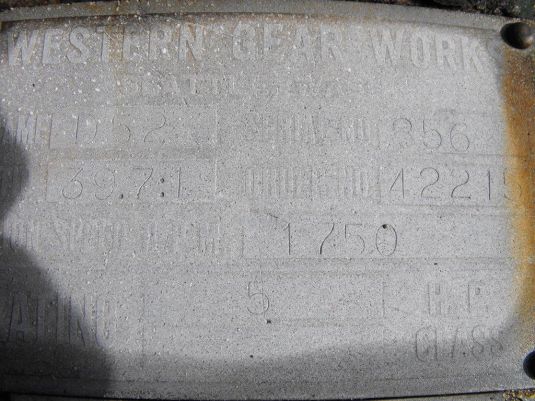

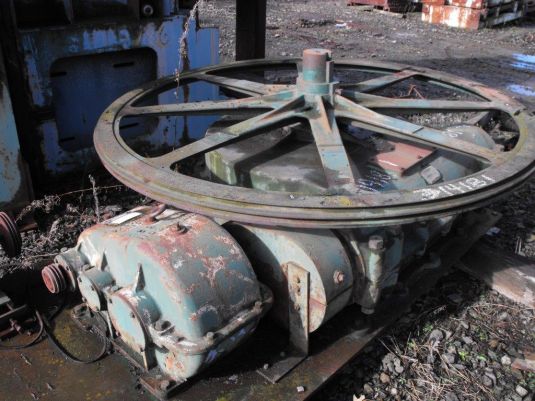

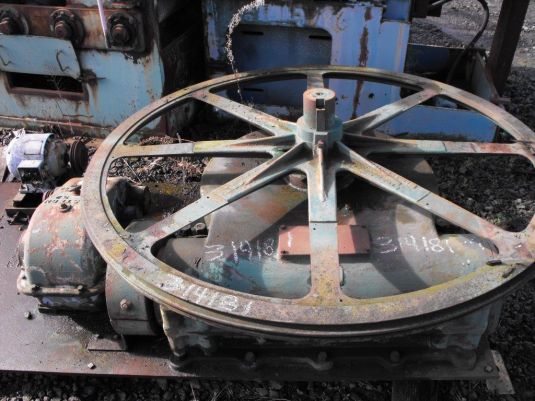

Western Gear assembly consisting of: Size D52 parallel reducer rated 5 hp, 39.7:1 ratio with a 1.65:1 open gear assembly on the output driving a Western size W90V vertical output reducer with 48:1 ratio. Total ratio is 3,144:1 so final rpm with 1800 rpm input would be .57 rpm output. Output shaft is 4-11/16” diameter. All mounted on a common base. Includes a 6 ft. diameter pulley installed. Turns smoothly by hand and appears in very good condition. Does not include a motor but we may be able to supply one depending on your requirements. Would be excellent for a round sorting table. See photo of Western 5HP, 3, 144:1 Total Ratio Gear Reducer Assembly on our web site. Inventory No. 314181. Located at our Portland, Oregon facility.
Click thumbnails below to view larger image:
