Used Schurman/CM&E Edger Chipping Late Model 4TA24/Model 34,

Used Schurman/CM&E Late Model 4TA24/Model 34, Chipping Edger, SN 2622.

Infeed Table -26-long with seven (7)
8-1/2" x 36" knurled and chromed
table rolls, six (6) jump chains,
parking ramps, shifting straight edge,
board turners, and feeds from right side,
if facing infeed end of system.

Infeed Module -4" x 36" capacity, with
two (2) powered knurled and chromed
press rolls, two (2) knurled and
chromed powered bedrolls, driven
by 7-1/2 HP SM cyclo-drive, laser box,
and over thickness bar.

Chipping Module - One (1) CM&E Model 34,
8-knife, bent knife chipping head
mounted on right side with sliding base,
150 HP Toshiba TEFC motor, (one 150HP motor missing) temposonics
controlled hydraulic linear positioner
cylinder, automatic bedway lubricator,
shroud, v-belt drive, guards, and
chromed bedplates.  Chipping head on
left side is same as right, but is stationary
and is missing motor.

Saw Module - Schurman Model 4TA24 saw box,
with shifting saw arbor without motor,
with two (2) chromed
smooth non-powered press rolls, three (3)
knurled and chromed powered bedrolls,
25 HP SM cyclo-drive, and temposonics
controlled hydraulic linear positioner
cylinder to control location of splitter saw.

System appears in good condition,
with all rolls and other wear parts showing little or
no use but has been sitting idle since 1997.

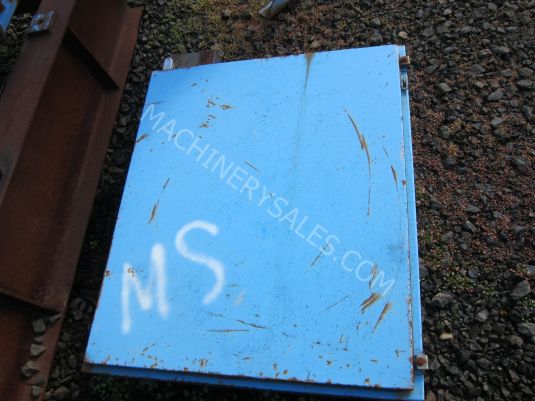

See photos of Schurman/CM&E
Late Model 4TA24/Model 34 Chipping
Edger on our web site.
Inventory No. 5687.
Located at our Portland, Oregon facility.
