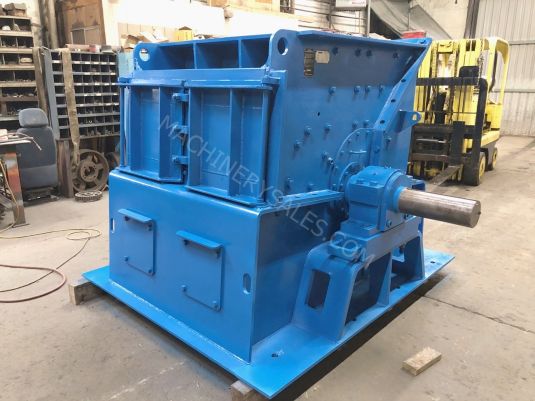

Jeffrey Hammer Hog, 55WBE Hammer Hog

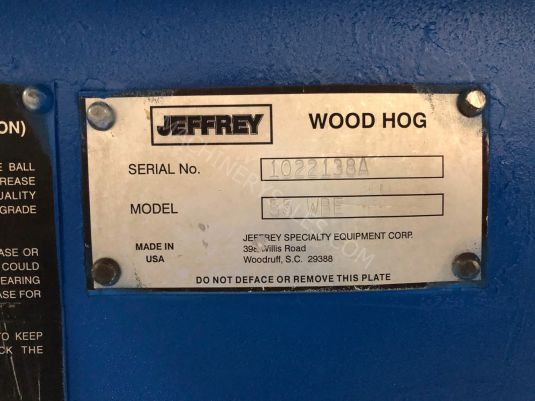

Jeffrey 55WBE Hammer Hog, serial number 1022138A, built 2006.

· WBE Model utilizes Jeffrey Rader’s exclusive
  EZ-Access Technology

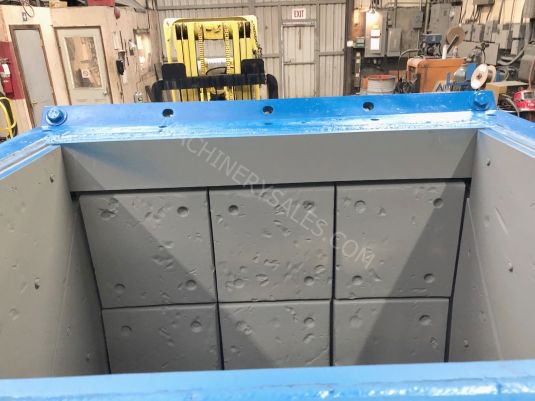

· Replaceable breaker plate liners and side
  liners on all models.

· All liners are drilled and tapped to
  reduce the possibility of liners falling
   into unit.

· SS rotor

· 180 degree screen area for final product
  sizing.

· Spherical roller bearings

· Integral metal trap

· Frame material: Carbon Steel

· Frame plate thickness:3/4” (44 mm)

. Breaker plate liner thickness:2” (51 mm)

· Side liner thickness:1 1/4” (32 mm)

· Rotor diameter: 40” (1016 mm)

· Rotor length:44 3/4 ” (1137 mm)

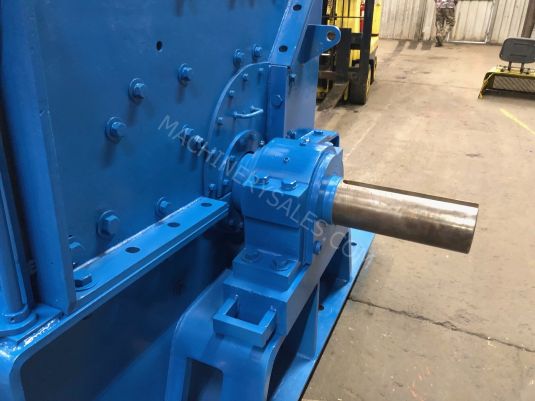

· Shaft material: Medium Carbon Steel

·  Shaft drilled for hydraulic bearing
   removal Machine opening 43” x 33 1/2”,
   discharge 46” x 77”.  24 to 50 Tons
   per hour capacity dependent on screen
   or grate size.

Size: 63” High x 86” wide x 72” long
16,400 lbs. Includes 300hp TEFC 460V
Electric Motor, New Rotor complete with
hammers and drive end spherical roller
bearing assembly, and New 4" Opening
Grid Screen.  Hog is now being serviced
and repaired in our shop before it is
shipped to the buyer. See photos of
Jeffrey 55WBE Hammer Hog on our
web site.  Inventory No.12573. Located
at our Portland, Oregon facility
