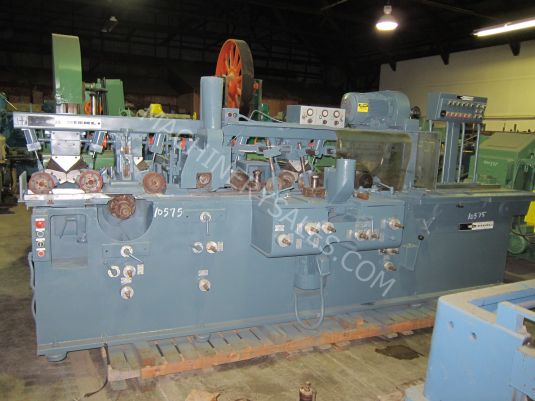

Used Diehl Moulder Model TFM-68 4" X 8" 6-Head High Speed Jointed

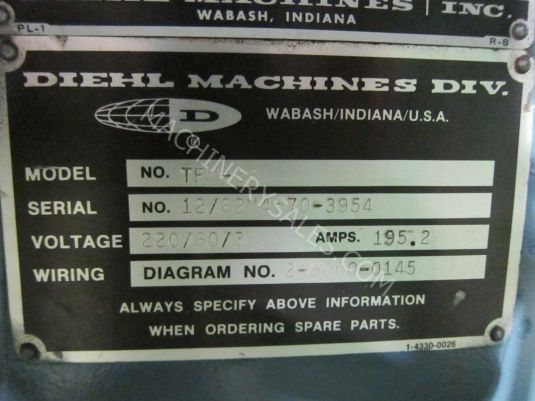

Used Diehl Model TFM-68 4” X 8” 6-Head High Speed Jointed Moulder, S/N 12/82M4570-3954. Head configuration is bottom, right, left, right, top, bottom. First bottom and first right side run at 3,600 RPM’s, all the other spindles run at 6,000 RPM’s utilizing included frequency changer. Sideheads tilt 35º inward and 5º outward. For brochure click on View PDF View PDF

First Bottom	15HP
Side Spindles	10HP
Top		15HP
Bottom		20HP

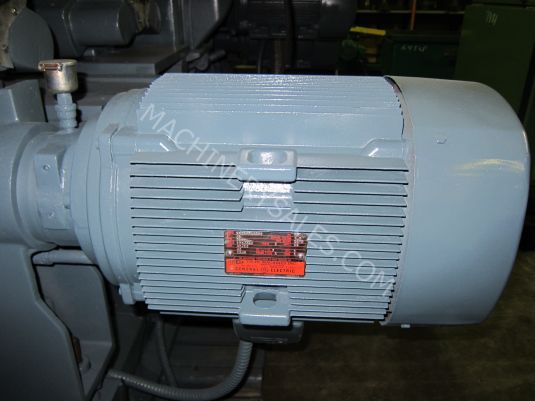

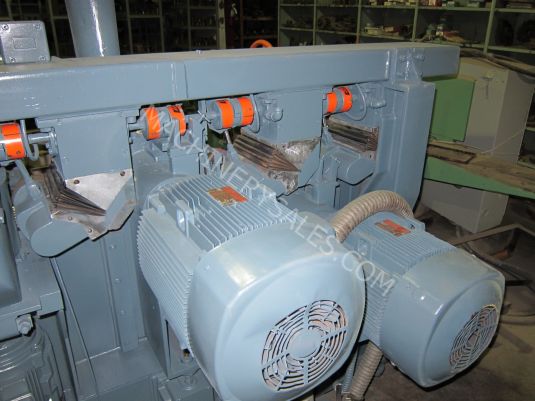

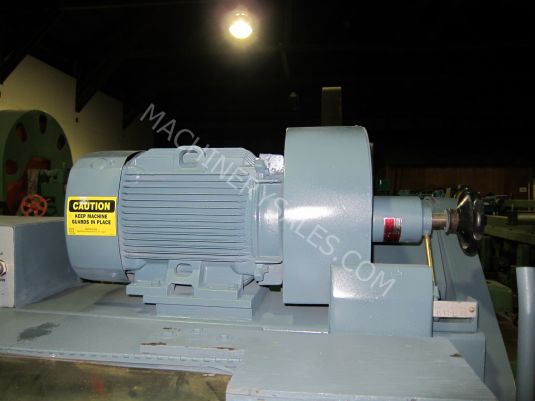

All motors are 230/460V TEFC direct
drive spindles.  5HP feed drive with
20-150 FPM standard.  Vertical spindles
are 1-13/16” and horizontal spindles
are 2-1/8”.  Currently equipped with

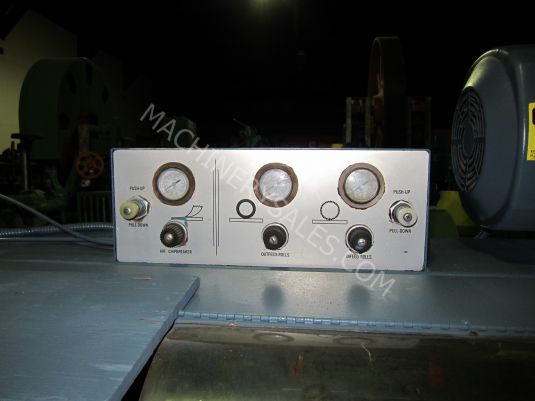

grooved bed.  Air chipbreakers and
feedroll tensioning.  Starting panel
and transformer included. See photos
of Diehl Model TFM-68 4” X 8” 6-Head
High Speed Jointed Moulder on our
web site.  Inventory No. 10575. Located
at our Portland, Oregon facility.

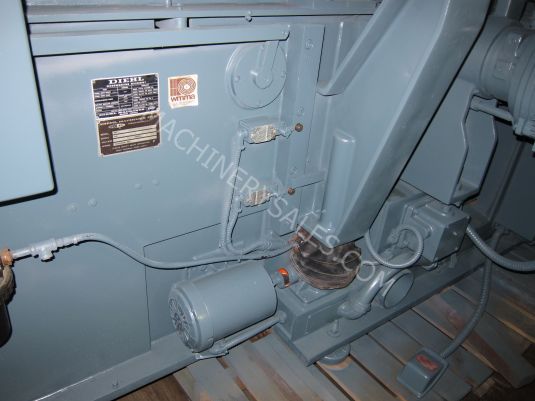

Used Diehl Moulder Model TFM-68 4

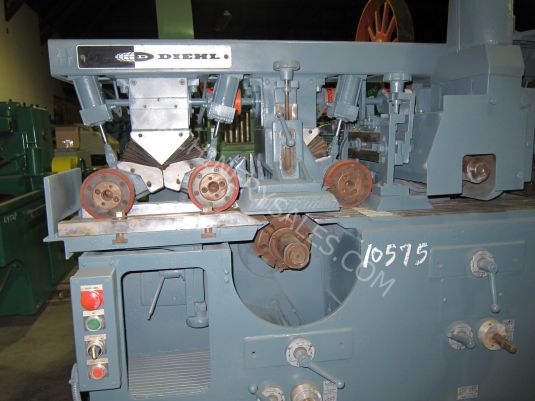

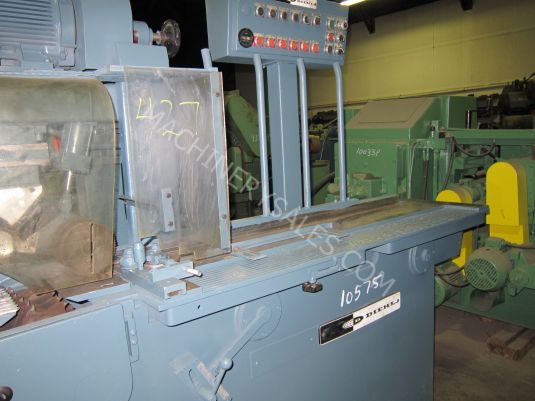

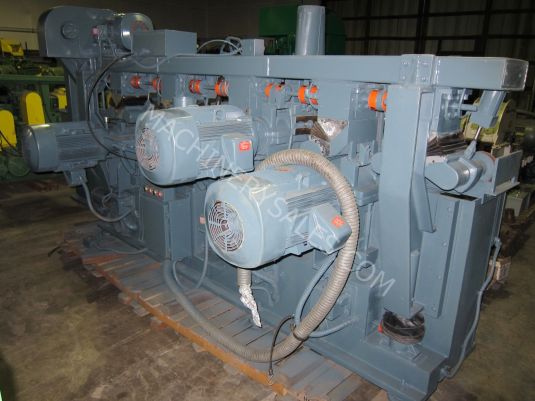

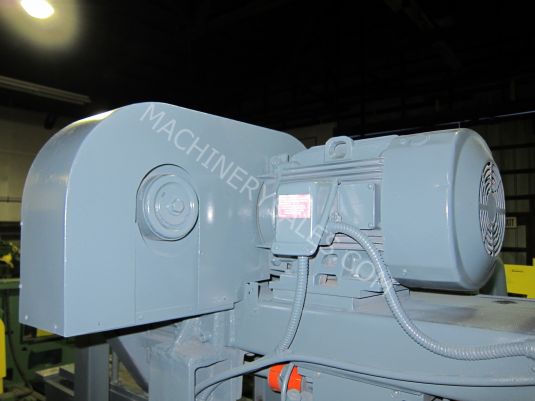

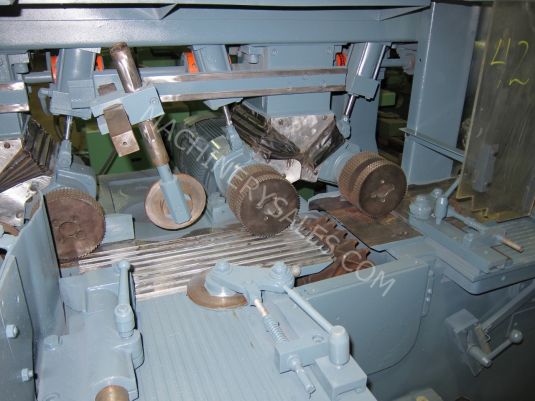

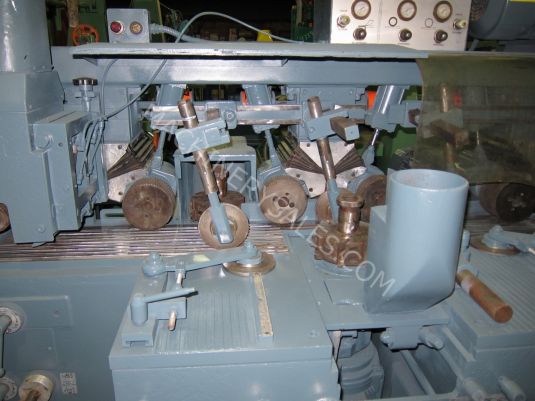

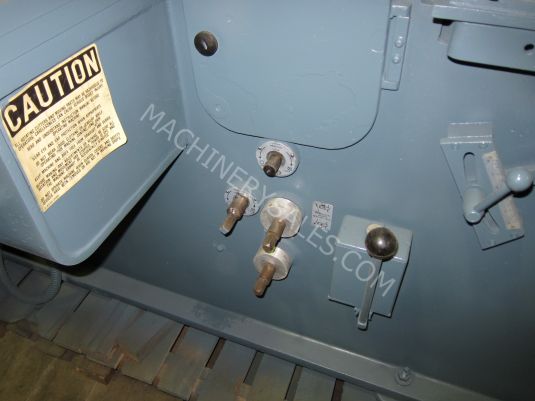

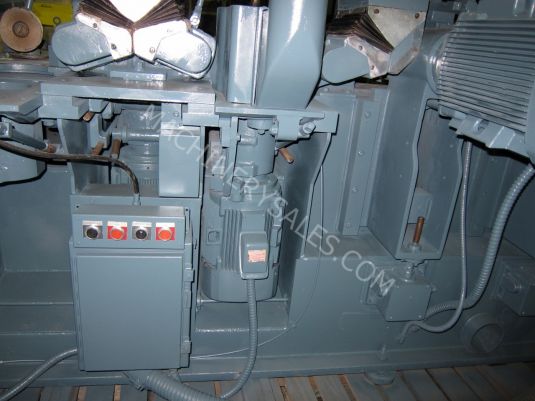

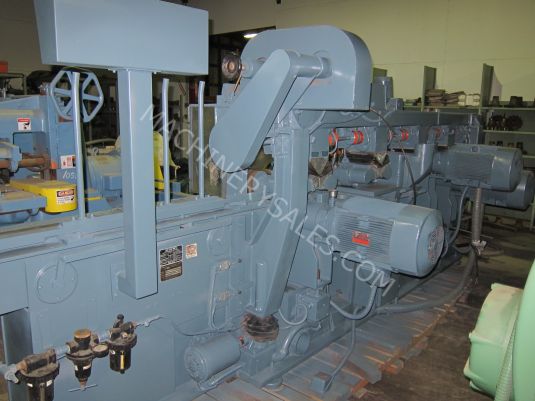

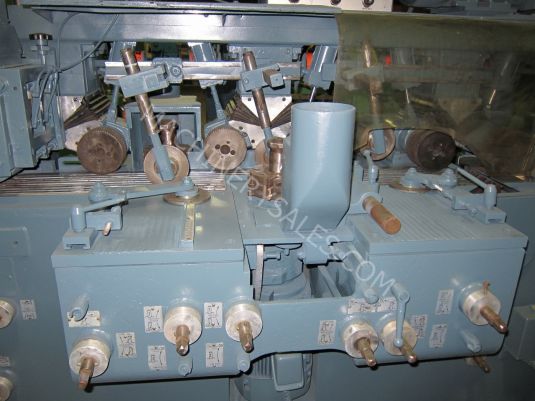

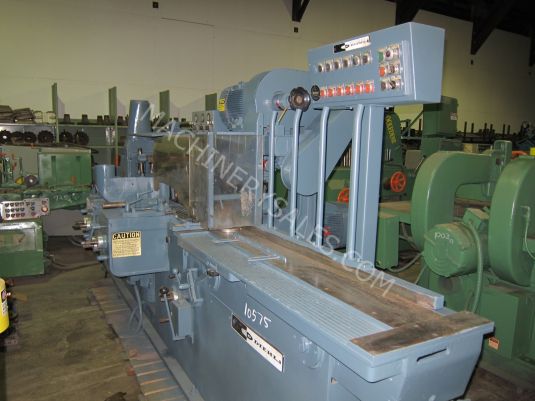

Click thumbnails below to view larger image:
